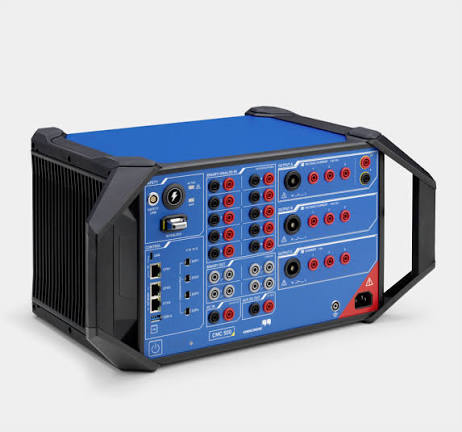

CMC 500
Modular, multi-phase protection relay test set and commissioning
Product Overview
The CMC 500 gives you an efficient way of tackling current challenges in the field of protection technology that arise due to an aging infrastructure, the expansion of power grids, and an increasingly acute skills shortage.
This lightweight, robust test set delivers a consistently high level of testing quality in minimal time.
The versatile solution is second to none when it comes to safety, cybersecurity, and being ready for the future.
This lightweight, robust test set delivers a consistently high level of testing quality in minimal time.
The versatile solution is second to none when it comes to safety, cybersecurity, and being ready for the future.
Key Specifications
Type U, type S, and type V
- Switchable between 300 V and 30 A (30 A for 2 seconds, 15 A continuously)
- Unmatched amplitude, frequency, and phase accuracy at high output powers per channel (> 150 W)
- Wide frequency range of up to 5 kHz
- Very high signal quality (THD)
Type H
- High current amplitudes of 60 A per channel (for 2 seconds, 30 A continuously)
- Very high output power per channel (> 350 W)
- Extended frequency range of up to 3 kHz
- Switchable between 300 V and 30 A (30 A for 2 seconds, 15 A continuously)
- Unmatched amplitude, frequency, and phase accuracy at high output powers per channel (> 150 W)
- Wide frequency range of up to 5 kHz
- Very high signal quality (THD)
Type H
- High current amplitudes of 60 A per channel (for 2 seconds, 30 A continuously)
- Very high output power per channel (> 350 W)
- Extended frequency range of up to 3 kHz
