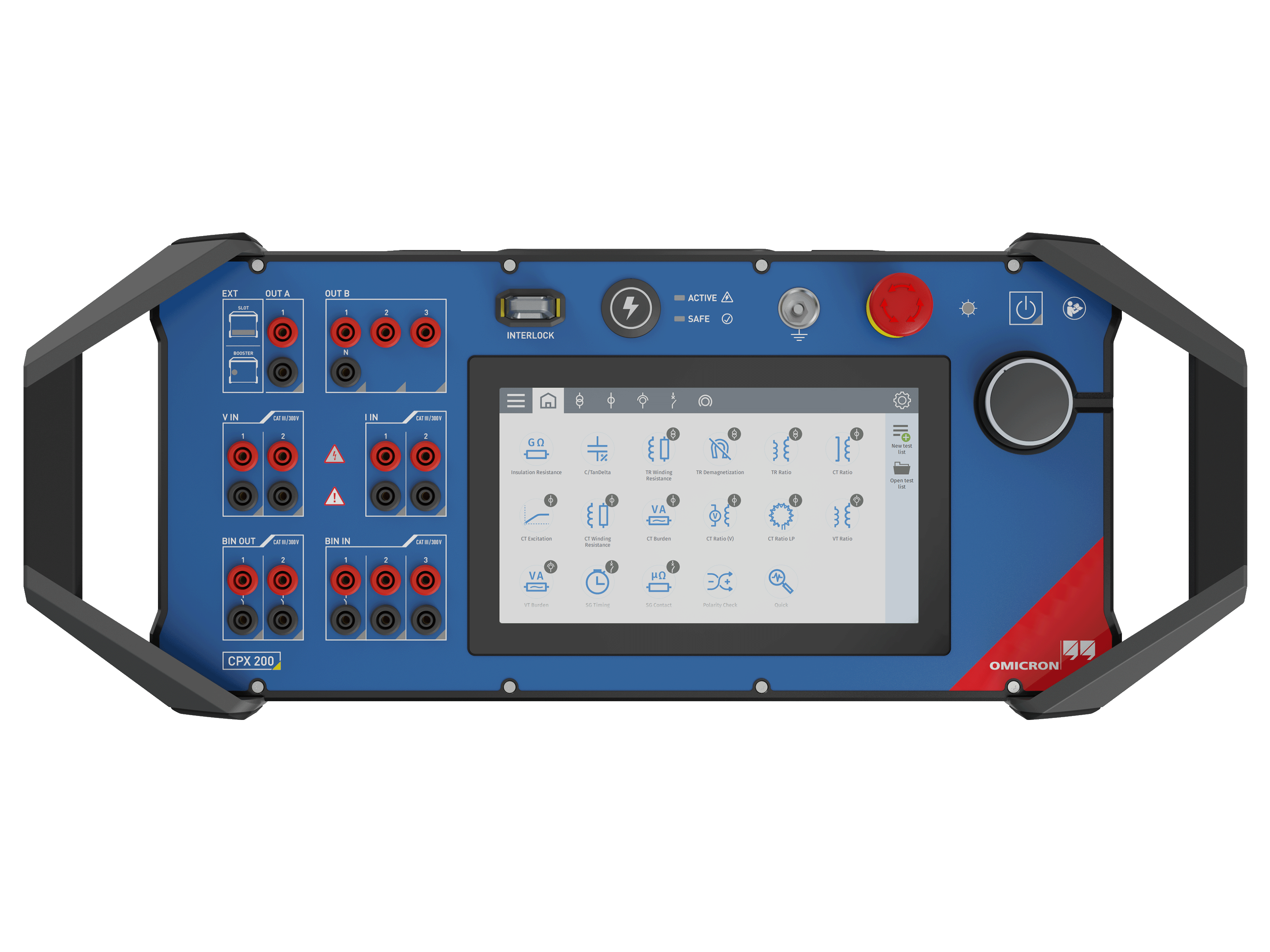

CPX 200
A compact multifunctional testing device for commissioning, maintenance and condition assessments of medium and high voltage assets.
Product Overview
The CPX 200 is designed to meet the demands of today and the challenges of tomorrow’s energy systems. Compact, powerful, and exceptionally safe, it sets a new benchmark for next-generation multifunctional testing. Developed in accordance with internationally recognized standards, the CPX 200 meets all current safety and cybersecurity requirements. It’s ideal for substation commissioning and diagnostic testing of medium- and high-voltage assets. It delivers an outstanding performance that covers hardware, software, and accessories, ensuring long-term reliability and maximum value.
Key Specifications
- 1000 A AC/DC with High Current Module
- 10 kV AC/DC with HVX10
- Testing frequency range: 1 – 600 Hz and DC
- High measurement accuracy
All tests can be performed with a total system weight under 30 kg (66 lb)
- CPX 200: 10.6 kg (23.3 lb)
- High-Current Module: 3.3 kg (7.4 lb)
- HVX10 14.8 kg (32.7 lb)
- Avoid heavy lifting and cargo limitations via a lightweight system solution
