Mobil GC 2
Portable gas chromatograph for precise on-site analysis of dissolved gases – to ASTM D3612 and IEC 60567
Product Overview
Ageing processes such as oxidation or thermal breakdown steadily degrade the chemical and dielectric properties of the insulating oil. With the Mobil GC 2 you can react to faults early and reduce unplanned maintenance.
Key Specifications
Measurement technique : Gas-in-oil analysis with vacuum extraction and GC
Measuring range : Gas in oil – 0.1 – 100,000 ppm
Resolution : 0.1 ppm
Calibration : Traceable calibration gas for all new and aged insulating oils
Sampling : Glass syringe 10 ml, gas-tight
Power supply : 100 – 240 VAC, 50/60 Hz
Operating temperature : 0 – 50 °C · 5 – 95 % rel. humidity, non-condensing
Dimensions : 480 × 500 × 310 mm
Weight : 19 kg
Housing : Pelicase
Internal gas supply : Argon and hydrogen, both 99.999 % purity
Measuring range : Gas in oil – 0.1 – 100,000 ppm
Resolution : 0.1 ppm
Calibration : Traceable calibration gas for all new and aged insulating oils
Sampling : Glass syringe 10 ml, gas-tight
Power supply : 100 – 240 VAC, 50/60 Hz
Operating temperature : 0 – 50 °C · 5 – 95 % rel. humidity, non-condensing
Dimensions : 480 × 500 × 310 mm
Weight : 19 kg
Housing : Pelicase
Internal gas supply : Argon and hydrogen, both 99.999 % purity
Other Equipment from Energy Support

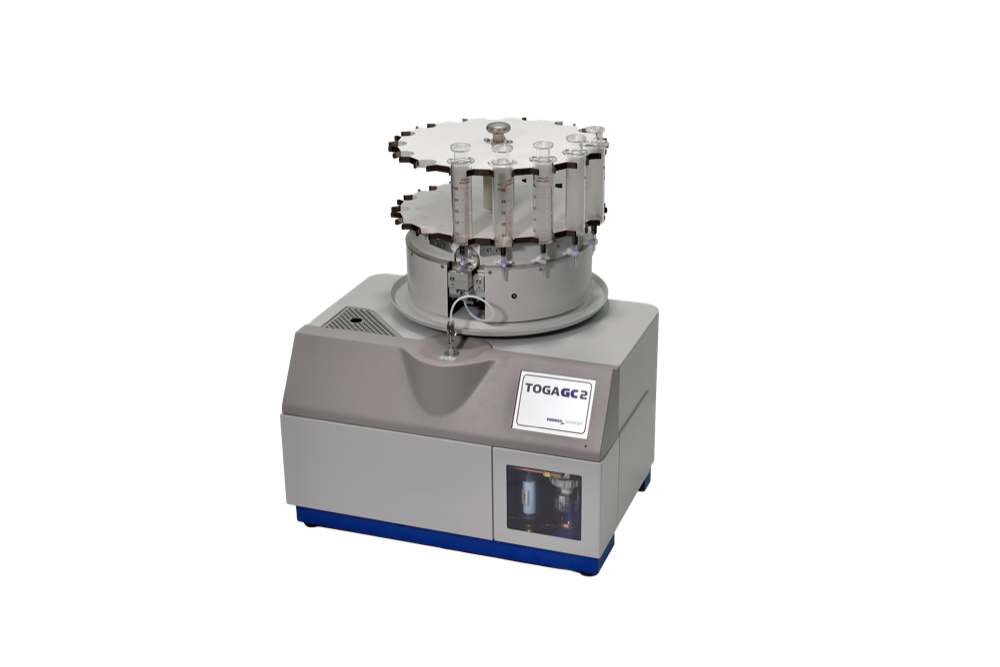

Toga GC 2
